Liya Tube Option
✅ French Orca Hypalon or Germany PVC Inflatable Tube
✅ Solid Foam-filled Tube
✅ D Shaped Foam Tube also available according to requirements
✨ Product Overview
The 7-meter aluminum alloy military RIB boat is designed for high-intensity missions, covering a wide range of scenarios such as water patrols, tactical transportation, emergency rescue and maritime law enforcement. It uses aviation-grade lightweight aluminum alloy hull and military-grade air cylinder technology, combined with a 27° deep V fluid mechanics structure, to achieve a golden balance of speed, stability and load. A single boat can carry 14 people, is equipped with a 150-200 horsepower engine, and redefines the standard of maritime equipment with all-weather weather resistance.
⭐ Core advantages
🔹[Hull structure | Military-grade lightweight design]
✓ 5-year warranty Aviation aluminum alloy: impact and corrosion resistance, 30% increase in strength-to-weight ratio, 790kg net weight for high maneuverability
✓ 27° deep V hull: 6 airtight compartments + fluid dynamics optimization, 30% reduction in water resistance, high-speed wave-breaking as a platform

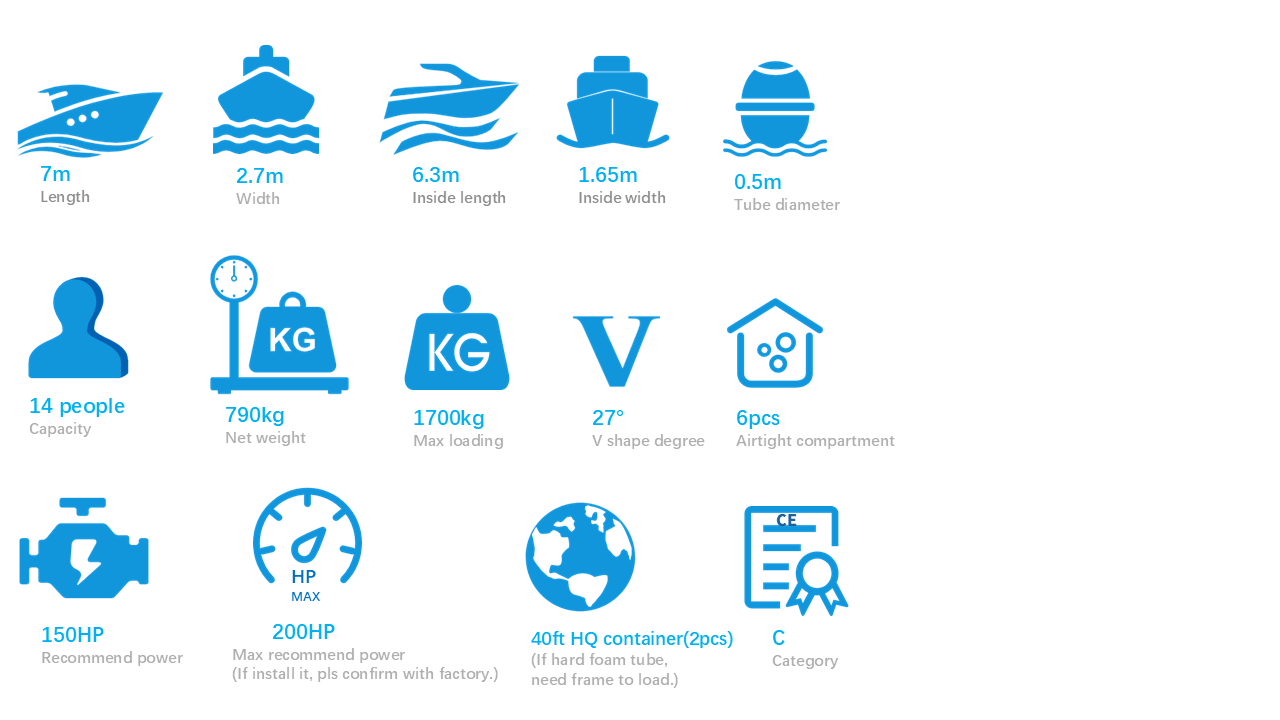

✓ Golden size: total length 7m × width 2.7m, inner compartment 6.3m × 1.65m, 0.5m buoy diameter to ensure buoyancy in bad sea conditions
🔹 [Inflator system | Double-track protection system]
◆ ORCA France Hypalon (15-20 years of life)
6-dimensional protection: UV resistance/high and low temperature resistance/explosion and wear resistance/oil and corrosion resistance/airtight and watertight double protection
◆ Liya military-grade cylinder (5-year warranty)
3-layer protection structure: heat-sealed PVC + Hypalon adhesive layer + foam core, puncture-resistant and non-sinking
Intelligent safety design: Leafield C7/A6 leak-proof valve + 6 independent air chambers + anti-slip friction pattern
Zero maintenance commitment: buoyancy is not affected by temperature fluctuations
🔹 [Tactical expansion | Deep customization]
■ Deck material options: EVA shock-proof and noise-reducing deck or PVC anti-slip tactical deck
■ Modular modification: support OEM/ODM development such as night vision bracket/weapon base/rescue crane
■ Container double ship transportation: 40HQ cabinet carries 2 ships at a time, global rapid response deployment
🔹 [Power configuration | Precise matching solution]
★ Recommended configuration: XL 25-foot 150HP engine
★ Extreme configuration: 200HP high-performance engine
★ Fuel consumption optimization: 22% energy saving compared to traditional steel hull
Designed for water entertainment, fishing and family gatherings, or work, business, rescue, etc.
⚓ Hull design|Military-grade innovative architecture
✓ 5-year warranty aviation aluminum alloy
Lightweight: 35% lighter than traditional steel hull, doubled maneuverability
Super strong protection: anti-salt corrosion/anti-impact/anti-fatigue deformation
✓ 27° tactical deep V hull
Fluid mechanics optimization: wave breaking angle + center of gravity intelligent ratio, high-speed navigation water resistance reduced by 28%
✨ Cylinder system|Dual-core protection technology
◆ ORCA French Hypalon cylinder (15-20 years of life)
① Anti-UV coating|② High and low temperature climate tolerance
③ Self-repairing wear-resistant layer|④ Explosion-proof and anti-fuel oil penetration
⑤ Molecular-level airtight structure|⑥ Chemical warfare agent protection shield
◆ Liya military-grade cylinder (5-year warranty)
▸ Outer layer: machine heat-sealed PVC/Hypalon tear-resistant skin
▸ Core: closed-cell foam buoyancy core, puncture-resistant and non-sinking
▸ Bottom layer: Hypalon bonded reinforcement ribs
◆ Intelligent safety system:
» 6 independent air chambers + British Leafield C7/A6 anti-leakage valve
» Anti-skid friction pattern + self-draining channel, deck combat readiness level anti-skid
⚙️Tactical expansion | Deep customization freedom
■ Deck modular options
Silent assault type: EVA shock-absorbing and noise-reducing deck
Heavy-duty tactical type: PVC anti-skid deck
■ Personalized customization service
Support customers to participate in the design process
🌍 Global deployment | Strategic delivery plan
★ Double-ship container transportation: 40HQ standard cabinet loaded with 2 whole boats.
⚓ Standard combat configuration
🔹 Hull reinforcement components
|Powder-coated aluminum hull|
|Self-draining deck|
|PVC anti-slip deck|
|Bow anchor bollard|
|Front anchor box|
|Hypalon rubbing strake|
|Hypalon soft handle|
🔹 Control system core
|Aluminum console|
|Aluminum driving seat|
|Stern backrest & cleat seat|
|200L aluminum fuel tank|
|Battery box + 60A switch|
🔹 Safety operation and maintenance kit
|Foot pump + bilge pump|
|Lifting points and towing eyes|
|Iron frame with pulley to place boat|
|Air valves|
|Repair kits|
|Hull mounting pad|
✨ Tactical upgrade options|Customized on demand
🔹 Navigation and communication enhancement
|Red and green navigation lights + Stern white light|
|VHF, type IC-M330G |
|Compass|
|Police flashing light|
|Stainless steel horn|
🔹 Power and control upgrades
|Italy hydraulic steering|
|Outboard motor|
|UK A6 safety valve to protect tube|
(Don't move safety valve, it will work automatically in need.)
|Hypalon rigid handle|
|Switch with 4 buttons/6 buttons/8 buttons|
🔹 Special mission module
|Stainless steel ladder|
|T-top (aluminum/stainless steel optional)|
|Teak deck/Computer Numerical Control engraving EVA deck|
|20L insulated cabinet|
🔹 Logistics support system
|Trailer|
|Boat cover|
|Life jacket|
|New aluminum arch, navigation lights|
1. Safe Operation Procedures
Pre-Voyage Preparation
Confirm that the inflation level of the tubes aligns with the manufacturer’s guidelines, and examine the hull, valves, and seams for cracks or wear.
Check that the bilge drain plug is properly sealed and verify the presence of essential safety equipment (e.g., life vests, emergency flares, first aid kit).
Inspect engine coolant levels, fuel lines, and ensure the propeller is free from obstructions like fishing lines or seaweed.
While on the Water
Adhere strictly to the boat’s maximum load capacity to maintain stability and buoyancy.
Steer clear of rough sea conditions (e.g., storms, heavy swells) and adjust speed to avoid pounding against waves, which can stress the hull.
Position passengers to balance weight distribution and prevent listing.
Emergency Protocols
If a tube deflates, cease operation immediately, navigate to the nearest safe location, and use emergency patching materials.
Engage the bilge pump if flooding occurs and orient the bow toward oncoming waves to reduce capsizing risks.
2. Maintenance Best Practices
Hull and Tube Care
Aluminum Framework: Wash down the aluminum parts with freshwater after saltwater exposure. Monitor for oxidation or dents, and address bare metal spots with anti-corrosion coatings.
Inflatable Sections: Store tubes away from direct sunlight to prevent UV damage. Clean with non-abrasive solutions, and avoid over-deflation during storage to preserve shape.
Engine Maintenance
Run freshwater through the engine’s cooling system after each use to eliminate salt deposits.
Schedule routine oil changes, inspect spark plugs, and test fuel connections for leaks or wear.
Storage Recommendations
Keep the boat in a shaded, dry area with moderate humidity to prevent mold or metal fatigue.
Maintain partial inflation in tubes when not in use to avoid seam stress.
Periodic Checks
Conduct monthly inspections of tube valves and seams for early signs of wear; replace damaged adhesive strips promptly.
Book annual professional assessments to evaluate hull welds, transom strength, and overall structural integrity.
