Liya 29 Foot Military Rigid Inflatable Boat With Aluminum Hull

Liya 29 Foot Miltary grade Rigid Inflatable Boat With Aluminum Hull
With 10-18 Seats according to requirements

🔹 Description
The 9-meter aluminum alloy military RIB boat is equipped with a lightweight aluminum alloy hull and a deep V structure, which significantly improves the speed and stability, and is suitable for multiple scenarios such as patrol, rescue and military assault.

The boat is equipped with a 450-600L aluminum alloy fuel tank, which takes into account both endurance and explosive power. The Liya cylinder uses foam filling technology to achieve maintenance-free, puncture-resistant, high safety, and long-term storage characteristics. It is an all-round solution for the military, law enforcement and professional rescue fields.

🔹Core Advantages
✅ Military-grade aluminum alloy hull
• Lightweight: 40% lighter than steel hull, 20% faster
• Corrosion and impact resistance: 5-year warranty, no fear of salt spray and reef impact
• Deep V hull: intercept water waves, reduce resistance by 15%, and resist rolling at rest

✅ Durable air cylinder
1. Liya foam-filled PVC or hypalon solid air cylinder
• High safety: foam material provides permanent buoyancy without leakage, puncture and burst resistance
• Maintenance-free design: British Leafield top valve + independent air chamber
• Anti-wear stripes: Hypalon friction stripes to protect the tube.
2. ORCA French Hypalon air cylinder
• 15-20 years of service life: UV resistance/high and low temperature resistance/wear resistance
• Explosion-proof and leak-proof: water-tightness and air-tightness, fuel resistance and chemical resistance

🔹All-round scene adaptation
Patrol/rescue: high-speed stability, precise positioning
Military assault: strong concealment, explosion-proof and anti-sinking

🔹Power configuration
Recommended horsepower: 250-300 horsepower (single/dual)
Maximum horsepower: 400-500 horsepower

🔹Global service support
OEM/ODM customization: configuration, painting, brand name printing, etc.
Transportation: 40-foot HQ container, loaded with 2 ships.

Liya 29 Foot Work Rigid Inflatable Boat With Aluminum Hull

More videos please check :https://www.youtube.com/@LiyaBoat

Liya 29 Foot Hypalon Rigid Inflatable Boat With Aluminum Hull

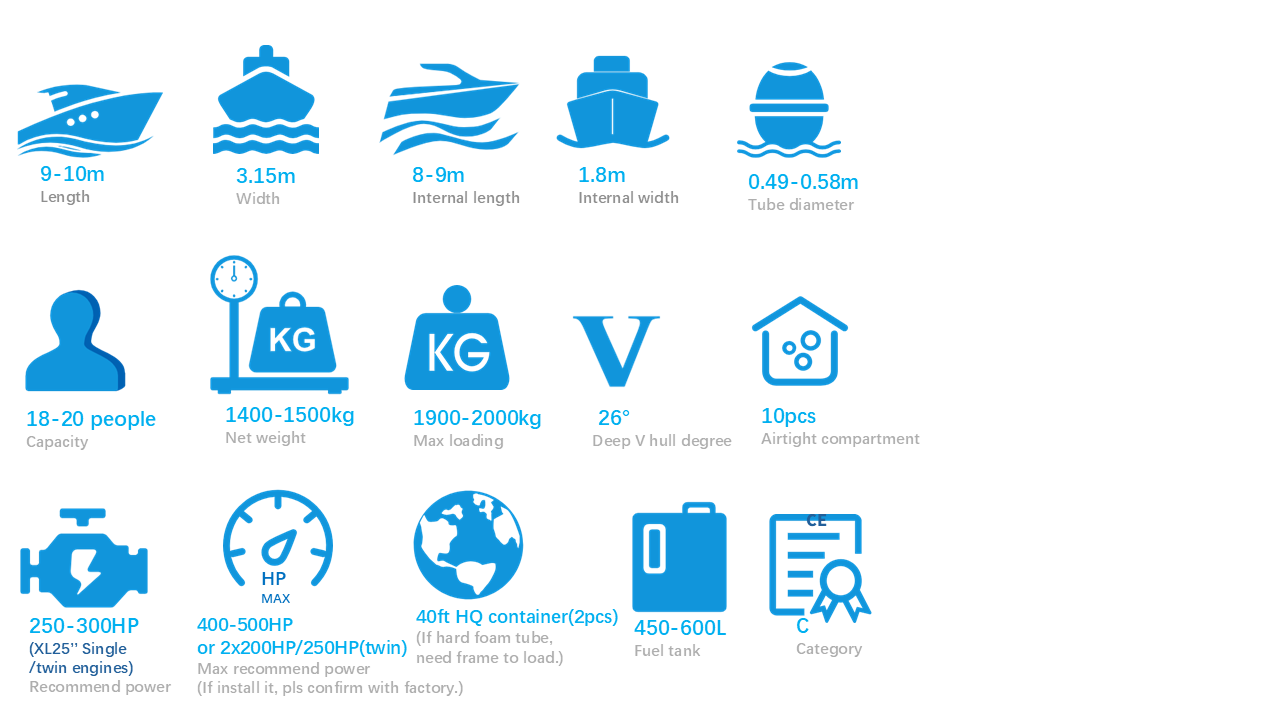

Technology Specification

Liya 9 meter Aluminium hull rigie infaltable boat load about 18-20 people ,

single max horse power with 400 HP or twin 200 HP

⚓ Hull design · Wave-breaking blade
1. Lightweight aluminum alloy hull
o Military-grade material: 40% lighter, impact-resistant and corrosion-resistant
o Super long warranty: 5-year hull warranty, verifying extreme durability

2. 26° deep V hull structure
o Intercept water waves: optimize the V-shaped angle, reduce resistance, and sail faster.
o Double stability:
→ Reduce dynamic sailing resistance by 15%
→ Suppress lateral drift when stationary

🛡️ Float system · Dual solutions
1. Liya custom air cylinder
① Machine heat-sealed PVC/adhesive Hypalon air cylinder: zero gap bonding, eliminate the risk of air leakage
② Foam-filled solid PVC/Hypalon air cylinder:
→ Never sink: puncture and burst still maintain 100% buoyancy
→ Maintenance-free design: corrosion-resistant, UV-resistant, worry-free storage for ten years
③ Safety redundancy:
→ 10 independent air chambers 🌀
→ British Leafield C7/A6 top valve
→ Hypalon anti-wear stripes to resist scratch damage

2. ORCA French Hypalon air cylinder
① Anti-ultraviolet aging ☀️
② All-weather weatherproof❄️🔥
③ Mechanical strength increased by 50%, resistant to wear and tear
④ Anti-fuel/chemical corrosion ⚗️
⑤ Military-grade watertightness and airtightness 💧
⑥ Life benchmark: 15-20 years of ultra-long service, Liya 5-year warranty commitment

🌐 All-round customization · Global adaptation
• OEM/ODM support:
→ Power configuration: single machine/dual machine free selection
→ Paint logo: military camouflage/rescue fluorescent/corporate LOGO

Liya 9 Meters Aluminum RIB Rigid Inflatable Boat Standard & Optional Accessories Lists

Liya 9 Meters Aluminum RIB Rigid Inflatable Boat Safety Operation & Maintenance Guide

I. Key Points for Safety Operation

Pre-sailing Inspection

Confirm that the air chamber pressure meets the standard (according to the manufacturer's recommended value), and check whether the hull, air valve, and seams are leaking or damaged.

Check whether the drain plug on the bottom of the boat is closed and whether the life-saving equipment (life jackets, fire extinguishers, flares, etc.) is complete.

Ensure that the engine oil level and cooling system are normal, and the propeller is free of entanglements.

Precautions during navigation

Observe the load limit to avoid overloading and causing the hull to be unbalanced.

Avoid sailing in bad weather (strong winds and waves, low visibility), maintain a reasonable speed during sailing, and reduce sharp turns or high-speed collision surges.

Passengers need to be evenly distributed to avoid concentrating on one side.

Emergency treatment

If the air chamber leaks, stop sailing immediately and dock nearby, and use repair tools for temporary treatment.When the hull is flooded, turn on the drainage pump to keep the bow facing the waves to prevent capsizing.

2. Daily maintenance measures

Hull maintenance

Aluminum alloy part: rinse salt with fresh water, check corrosion and scratches regularly, and repaint and prevent rust in time.Inflatable air chamber: avoid exposure to sunlight or long-term pressure, keep it in a semi-pressurized state during storage; use special detergent to clean stains, and do not use sharp tools or chemical solvents.

Engine maintenance

Flush the cooling pipe with fresh water after each use to prevent salt crystallization and blockage.

Regularly replace engine oil and filter element, and check the sealing of fuel pipe.

Storage requirements

When parked for a long time, the hull needs to be dry and ventilated to avoid high temperature or humid environment.

Inflate the air chamber to 50%~70% of the recommended pressure to reduce material fatigue.

Regular inspection

Check the air chamber joints and valve sealing every quarter, and replace aging rubber strips if necessary.

Professional inspection of hull structure and welding points every year to ensure no structural damage.
